Power range
560-585WMax efficiency
22.65%Power Tolerance (W)
0~+5WModule Size
2278mm × 1134mm × 35mm / 30mmWeight
30mm Frame:31.4kg / 35mm Frame:31.6kgNumber of Half Cells

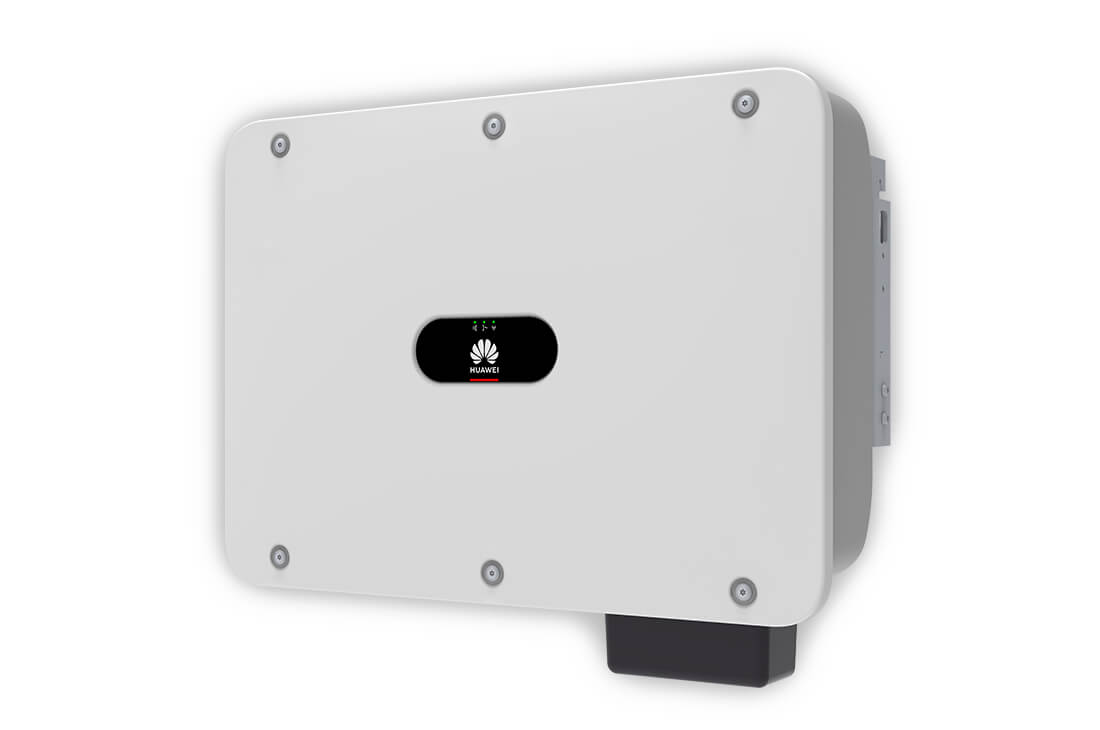

144 (2×72)Rated AC Active Power
30,000-40,000WMax efficiency
98.7%Max. Input Voltage
1,100 VDimensions (W x H x D)
640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)Weight
43 kg (94.8 lb)Smart
8 strings intelligent monitoring

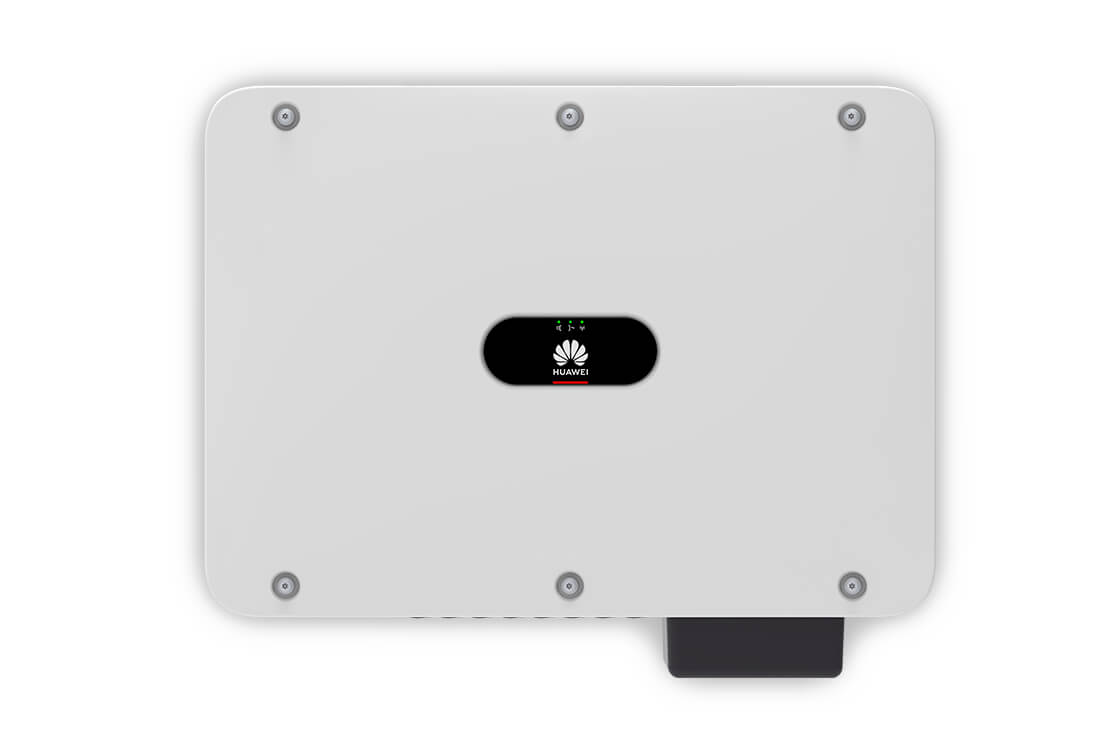

Rated AC Active Power
50,000Max efficiency
98.5%Max. Input Voltage
1,100 VDimensions (W x H x D)
640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)Weight
49 kg (108.1 lb)Higher Yields

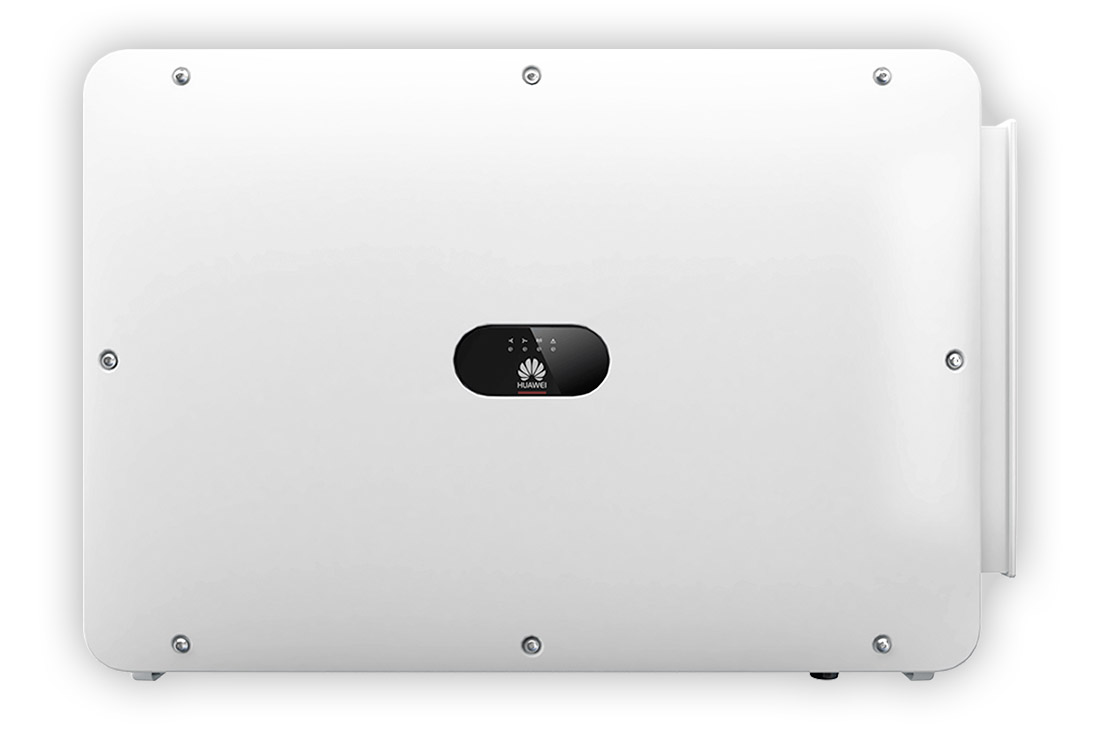

Up to 30% More Energy with OptimizerNominal AC Active Power
100,000Max efficiency
98.8%Max. Input Voltage
1,100 V1,035 x 700 x 365 mm
Weight
93 kgLED indicators; WLAN adaptor + FusionSolar APP
Single Phase
7.4kW/32AThree Phase
22kW/32ACharge power
1.4kW to 7.4kW / 1.4kW to 22kWNominal Current
6-32 ACommunication
Wi-Fi/EthernetRemote control & monitoring
App
